Enabling Indigenous Semiconductor Supply Chain Through Advanced Quartz Technology
Semiconductor manufacturing depends on ultra-high purity quartz components to maintain process stability, wafer yield, and contamination control. Fab Guardians provides comprehensive quartz manufacturing, refurbishment, repair, and lifecycle management solutions for semiconductor fabrication facilities, equipment OEMs, and service providers.
Our Quartz Technology Services support critical semiconductor processes including:
- Diffusion
- Oxidation
- LPCVD
- PECVD
- ALD
- Epitaxy
- RTP
- Wafer Cleaning
- Plasma Processing
Through advanced manufacturing capabilities, precision engineering, cleanroom practices, and semiconductor expertise, Fab Guardians helps fabs reduce downtime, extend component life, and build resilient local supply chains.
Why Quartz Matters in Semiconductor Manufacturing
Semiconductor-grade fused quartz (fused silica) is selected because of its exceptional properties:
Ultra-High Purity
- 99.995%โ99.9999% SiOโ purity
- Extremely low metallic contamination
- Minimal ionic contamination
Superior Thermal Performance
- Continuous operation up to approximately 1,200ยฐC
- Excellent thermal shock resistance
- Low thermal expansion coefficient
- High dimensional stability
Semiconductor Process Compatibility
- Chemical resistance
- UV transparency
- Plasma compatibility
- Low particle generation
Even minor contamination from quartz components can impact:
- Wafer defects
- Yield performance
- Device reliability
- Process repeatability
About Us
Enabling Indigenous Semiconductor Supply Chain Through Advanced Quartz Technology
Our services

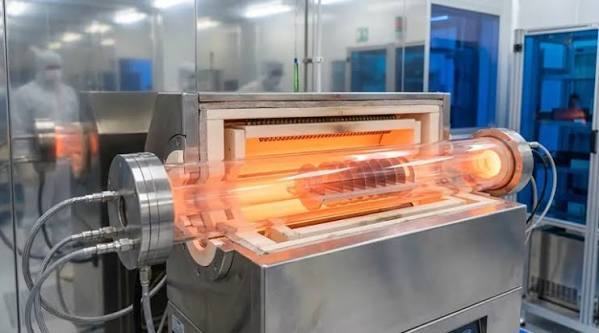

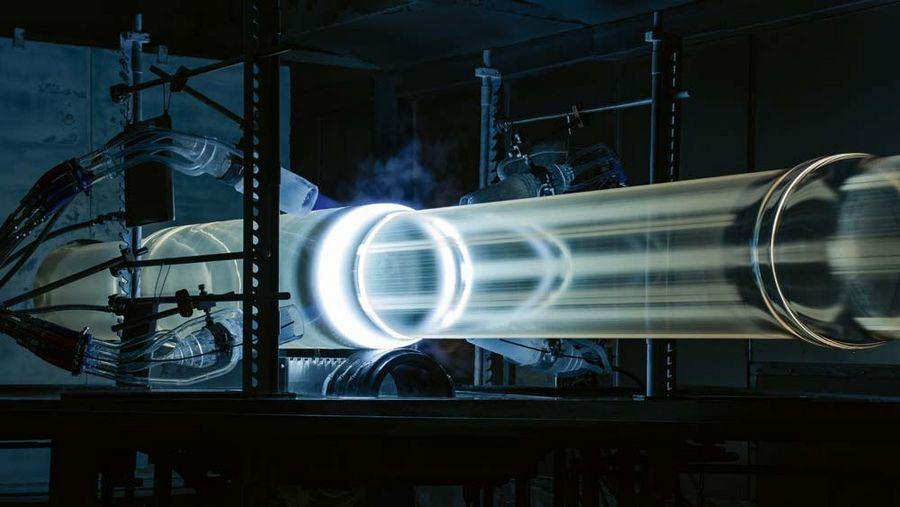

1. Quartz Furnace Tubes
Applications
- Oxidation furnaces
- Diffusion furnaces
- Annealing systems
Functions
- High-temperature process chamber
- Thermal isolation
- Controlled process environment
Capabilities
- Tube manufacturing
- Repair and welding
- Crack restoration
- Dimensional recovery
Typical sizes:
Length: 1โ3 meters
Diameter: 150โ450 mm

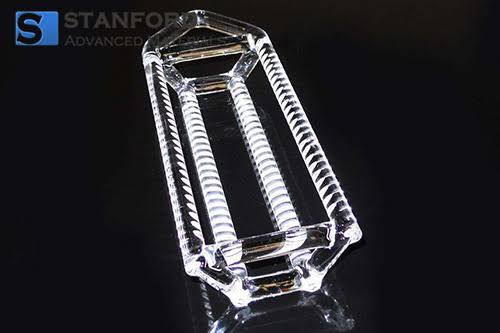

2. Quartz Wafer Boats
Applications
- Vertical furnaces
- Batch wafer processing
Supported wafer sizes:
- 150 mm
- 200 mm
- 300 mm
Manufacturing Capabilities
- Precision wafer slot machining
- Slot alignment correction
- Structural repair
- Particle reduction refurbishment
Critical requirements:
โ Accurate slot spacing
โ Thermal stability
โ Low contamination
โ Minimal particle generation
3. Quartz Pedestals
Applications:
- CVD chambers
- Etch systems
- RTP equipment
Fab Guardians provides:
- New fabrication
- Surface restoration
- Flatness correction
- Thermal performance evaluation
Critical characteristics:
- Clean process surface
- High flatness
- Uniform heat distribution
Our services
4. Quartz Shower heads
Applications:
- PECVD
- ALD
- CVD
Functions:
- Uniform precursor delivery
- Gas distribution control
Services:
- Precision hole drilling
- Flow pattern restoration
- Cleaning and refurbishment
Typical precision:
- Hole positioning accuracy: ยฑ20โ50 ฮผm depending on application
5. Quartz Bell Jars
Applications:
- Plasma processing
- PECVD
- Etching systems
Requirements:
- Optical clarity
- Low stress
- No inclusions
- High plasma resistance
Services:
- Replacement fabrication
- Crack repair
- Surface restoration
- Inspection
6. Quartz Injector Tubes
Applications:
Process gas delivery:
- Reactive gases
- Carrier gases
- Process chemistry
Capabilities:
- Precision gas-hole drilling
- Flow optimization
- Weld repair
- Replacement fabrication
Our services

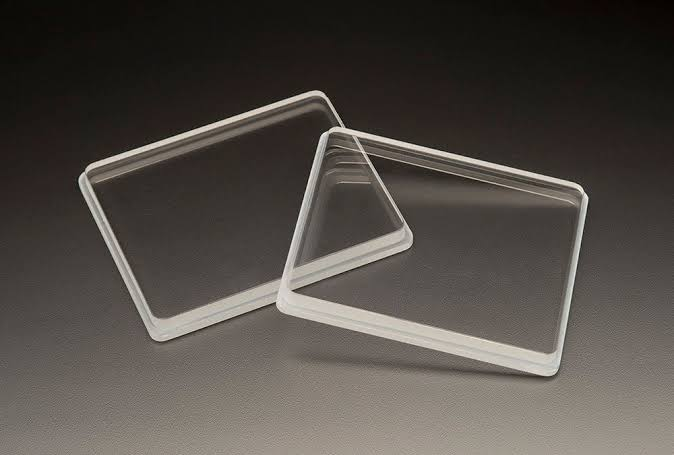

7. Quartz Windows
Applications:
- Pyrometry
- Plasma monitoring
- UV systems
- Laser inspection
Services:
- Optical inspection
- Surface polishing
- Replacement fabrication
8. Quartz Liners
Applications:
- LPCVD
- Diffusion
- Oxidation equipment
Benefits:
- Extended equipment life
- Chamber protection
- Reduced contamination

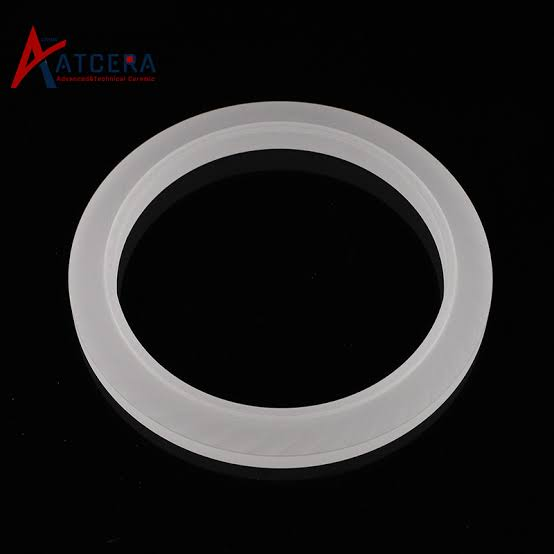

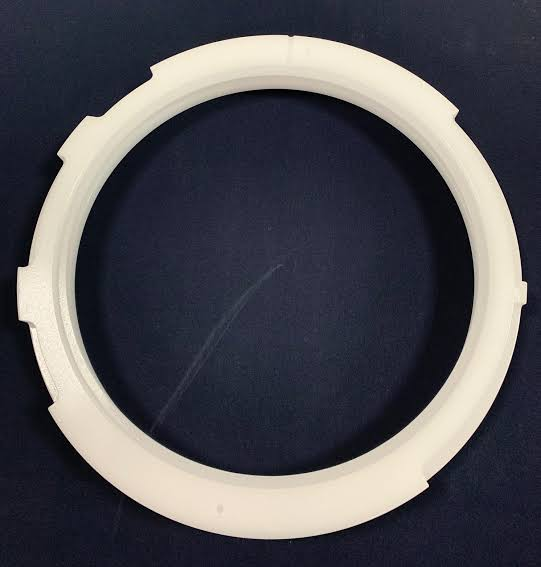

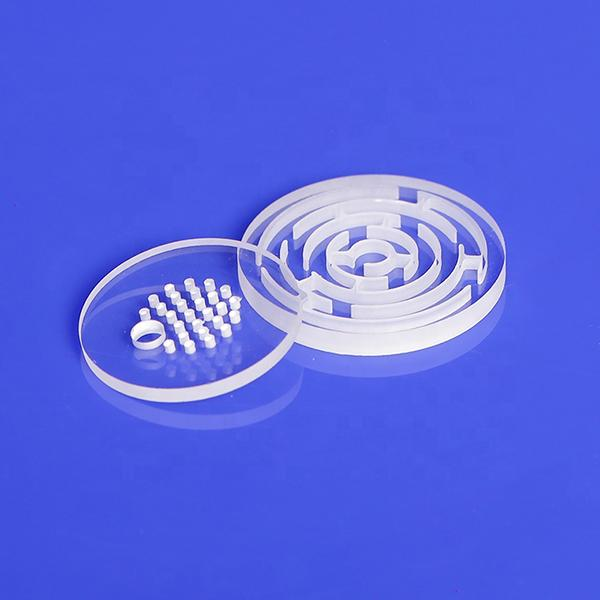

9. Quartz Rings
Applications:
- Focus rings
- Isolation rings
- Spacer rings
Services:
- Refurbishment
- Reverse engineering
- Precision machining
Our services

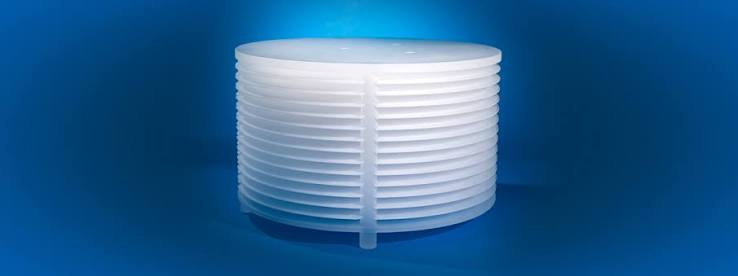

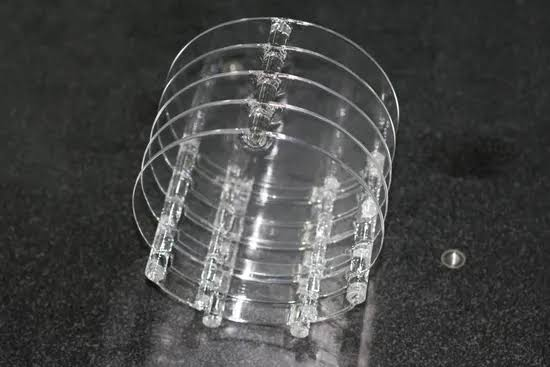

10. Quartz Baffles
Functions:
- Gas flow management
- Temperature control
- Particle management
Fab Guardians provides:
- Manufacturing
- Repair
- Process optimization support
Quartz Manufacturing Services
Advanced Manufacturing Process
1. High-Purity Quartz Material Selection
Materials:
- Synthetic fused silica
- Natural fused quartz
- Flame-fused quartz
Purity:
5Nโ6N grade quartz
(99.999%โ99.9999%)

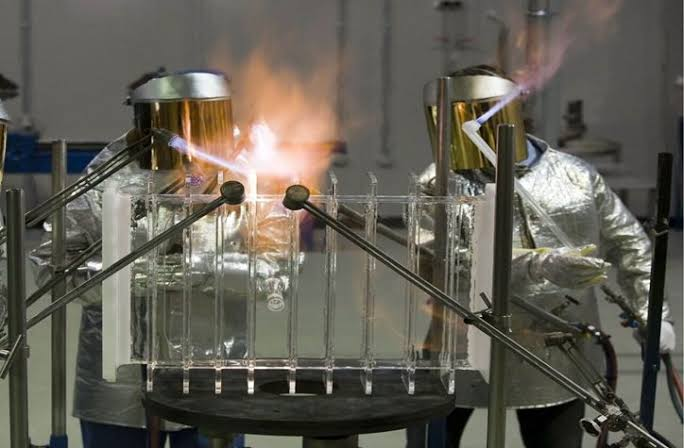

2. Quartz Forming & Fabrication
Processes:
- Flame working
- Lathe forming
- Quartz fusion
- Quartz welding
Equipment:
- Hydrogen-oxygen burners
- CNC quartz lathes
- Precision rotation systems
3. Precision Quartz Machining
Capabilities:
- Grinding
- CNC machining
- Slot cutting
- Precision drilling
- Surface finishing
Technology:
- Diamond tooling
- CNC grinding
- Precision machining centers
4. Fire Polishing
Purpose:
- Remove micro cracks
- Improve surface finish
- Reduce particle generation
- Increase component lifetime
5. Thermal Annealing
Purpose:
- Remove internal stress
- Improve mechanical reliability
Typical range:
- 900โ1,150ยฐC depending on component geometry.
6. Semiconductor-Grade Cleaning
Fab Guardians cleaning services include:
- DI water cleaning
- Ultrasonic cleaning
- Megasonic cleaning
- Chemical cleaning
- Acid cleaning where applicable
- Cleanroom handling
Cleanroom capability:
- Class 100 / Class 10 environments
Quartz Inspection & Qualification Services
Fab Guardians provides complete inspection:
1. Dimensional Inspection
- CMM measurement
- Optical measurement
- Laser scanning
2. Material Inspection
- Bubble analysis
- Inclusion inspection
- Stress analysis
- Polariscopic inspection
3. Surface Quality
- Optical inspection
- Surface roughness measurement
- Particle evaluation
Quartz Repair & Refurbishment Services
Extending Component Life Through Certified Repair
Repairing quartz components can significantly reduce:
- Equipment downtime
- Spare inventory costs
- Import dependency
- Production delays
Components Supported for Repair
โ Furnace tubes
โ Injector tubes
โ Wafer boats
โ Bell jars
โ Showerheads
โ Liners
โ Quartz rings
โ End caps
โ Gas injectors
โ Custom quartz assemblies
